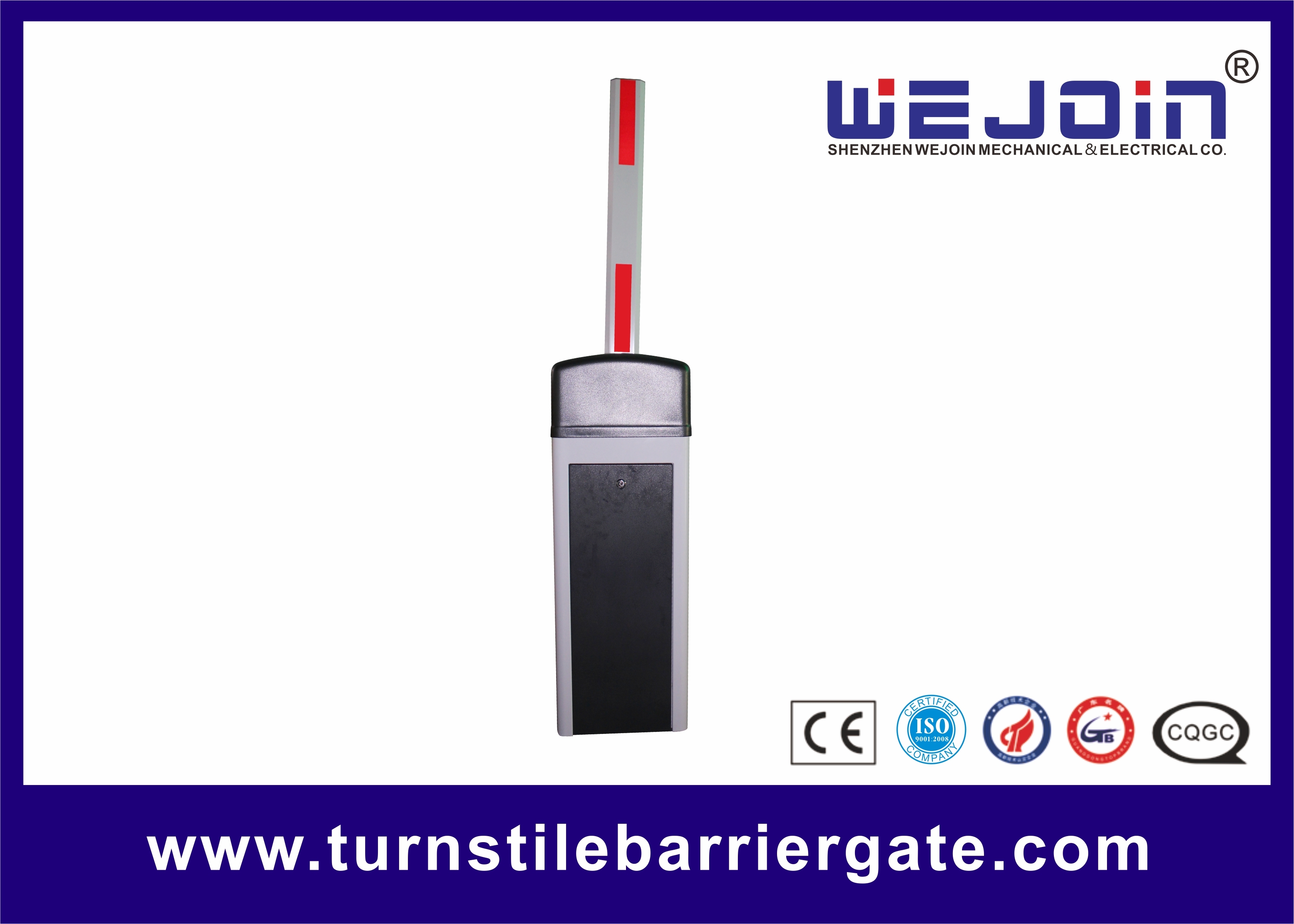

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface

1 مجموعة
MOQ
قابل للتفاوض
السعر
DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
ميزة: الانعكاس التلقائي على العرقلة
محرك: DC24V محرك بدون فرش
سرعة: 1.5S-6S
قوة: 180W
نوع الطفرة: ذراع مستقيم
الجهد االكهربى: AC100-265V
إبراز:

DC24V boom barrier gate,10A power supply boom barrier,RS485 interface boom gate

,

10A power supply boom barrier

,

RS485 interface boom gate

معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: WEJOIN
إصدار الشهادات: CE ISO SGS
رقم الموديل: DZ801
شروط الدفع والشحن
تفاصيل التغليف: كرتون
وقت التسليم: 15 يوم عمل بعد تلقي الدفع
شروط الدفع: ر/ر
القدرة على العرض: 10000 مجموعة/شهر
منتوج وصف

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface


Parking Barrier Gate Functional Features

1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.

2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.

4. support RS485 communication or RS485 folio online.

5. optional bluetooth module, convenient to debug anti-barrier door through small program.

6. large LCD display, Chinese visualization menu, convenient for function selection and debugging. 7. Left and right are interchangeable.

8. 1.5~6 seconds adjustable speed of opening and closing.


Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screws, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the cabinet

Expansion Screws

M16*150

4

sets

Fixing the cabinet

Support Post



1

pc

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For the cabinet door

Remote Controller



2

pcs



Manual



1

pcs



Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”


Valid time of loop detector signal

In the process of opening or up limit position, the duration time of the loop detector signal needs to exceed the setting time, and the auto-closing action will be executed after the loop detector signal disappears, avoiding that the loop detector signal is too short and triggers the auto-closing action to hit the vehicles. The default time is 200ms. Range: 100ms-900ms.
