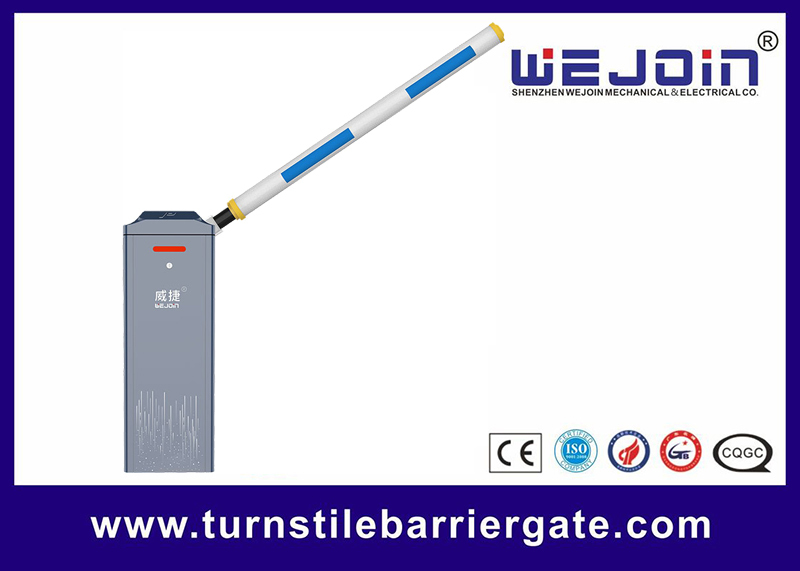

0.6s Die-Cast Aluminum Motor Boom Barrier for Parking Lots

1 set
MOQ
negociate
السعر
0.6s Die-Cast Aluminum Motor Boom Barrier for Parking Lots
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
operating time: 0.6s~4s
boom type: Straight Round Arm
housing material: steel with powder coating
Color: Yellow
Application: parking lot
Warranty: 2 Year
إبراز:

die-cast aluminum boom barrier,motorized parking lot barrier,0.6s fast response boom barrier

,

motorized parking lot barrier

,

0.6s fast response boom barrier

معلومات اساسية
Place of Origin: CHINA
اسم العلامة التجارية: WEJOIN
إصدار الشهادات: CE ISO SGS
Model Number: S50
شروط الدفع والشحن
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
منتوج وصف

Die-casting aluminum alloy motor Arm Swing Out Boom Barrier 0.6s for Toll Gate Management



Barrier Gate Technical Data

Working temperature (motor)

-35℃~ + 70℃

Power supply input voltage

AC100~265V

Controller input voltage

DC24V±10%, 10A

Motor power

240W

Relative Humidity

30%~80%, No condensation

Distance of remote control

open and undisturbed, L≤50M

Running Speed

0.6~4 seconds adjustable

MTBF

6,000,000 times



Parking Barrier Gate Functions

1. Motor drive, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.

2. All series are equipped with rebound function, when the rod is blocked in the process of falling, it will rebound automatically.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.


Intelligent Barrier Common Malfunctions and Solutions

Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms

Possible Causes :The power-on self-learning speed of P-13 is too slow.

Solution:Increase 1-XX and 2-XX of P-13, and try again.



Malfunction Phenomenon:The controller displays IDLE

Possible Causes 1 : The motor sensor plug is not plugged in.

Solution 1: Insert the motor sensor plug well.

Possible Causes 2: Motor sensor failure.

Solution 2: Replace the motor.
