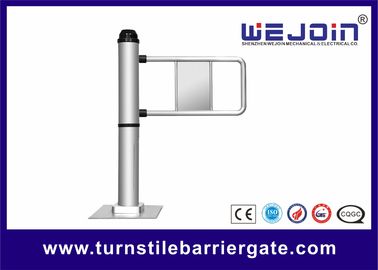

Electric Car Park Barriers Pedestrian Swing Barrier Gate with Traffic Light , AC 110V / 220V
Quick Detail:
Description:
1.WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and self-lock mechanism can also well protect the access control security.
2.WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.anti-reversing passing function
3.WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, bus station ,token system etc.
4.WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.
5.WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can ensure the entrance security.
6.WEJOIN swing barriers input interface available for dry contact and switch signal connection
Specifications
|
Model Item |
Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Arm Length(Optional) | 500-900mm |
| Swing Direction | Single or Bidirectional Operation are Available |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | 24V Brush DC Motor |
| Input Interface | Dry Contact and Switch Signal Connection |
| Motro Material | Steel and Aluminum Alloy |
| Working Temperature | —25°C~50°C |
| Time for Opening or Closing | 1 s |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Starting time after power on | 3 s |
| Relative Humidity | ≤90%, with no condensation |
