E40Pro Barrier Gate | Government Office Compound Entrance

Project Overview

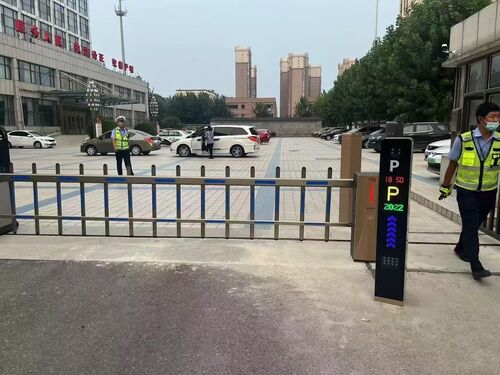

This project is a vehicle access control upgrade for the entrance of a government office compound. The main lane has a clear width of 4.5 meters. E40Pro intelligent barrier gates with 4.5m fence arm are deployed, equipped with non-spring machine core. Located at the open-air entrance of the government office, the site mainly handles official vehicles and visiting social vehicles, with concentrated traffic during weekday peak hours. There is also mixed traffic of pedestrians and non-motor vehicles. The compound has high requirements for access control security, equipment operation stability and neat appearance. The gates are integrated with license plate recognition system to realize orderly vehicle access and strengthen entrance security management.

Hardware Specifications

• Barrier gate model: E40Pro
• Boom specification: 4.5m fence arm with double-layer fence structure
• Core mechanism: non-spring machine core, eliminating traditional balance spring structure
• Drive mode: DC variable frequency motor drive
• Boom speed: adjustable from 3s to 6s
• Operating temperature: -30℃～70℃
• Input voltage: AC100～265V wide voltage adaptation
• Protection class: IP54, suitable for open-air outdoor conditions
• Structural feature: The fence arm adopts multi-vertical-bar frame structure, effectively blocking pedestrians and non-motor vehicles from illegal passing

Implementation Key Points

1. Foundation installation: Concrete foundation is poured on site, and the cabinet is horizontally fixed with expansion bolts to reduce equipment operation vibration and ensure position accuracy during long-term operation.
2. Boom assembly: The 4.5m fence arm is assembled in sections and fixed to the mechanism output end through special U-shaped connectors. Horizontal and vertical limits of the boom are preset before delivery. The non-spring machine core achieves dynamic balance through motor torque, requiring no on-site spring tension adjustment and greatly shortening installation and commissioning time.
3. System integration: Connected with the compound’s license plate recognition and vehicle management system to realize automatic vehicle verification and orderly exit release. It supports RS485 communication to connect to the compound’s security management platform for centralized control.
4. Safety protection: Standard obstacle rebound function automatically lifts the boom when encountering obstacles during closing. The fence arm structure improves visual warning effect and physically blocks pedestrians and non-motor vehicles from tailgating. Combined with loop anti-crush function, it builds multiple layers of safety protection.

Project Operation Benefits

For conventional spring barrier gates under high-frequency operation in government compounds, balance springs are prone to fatigue attenuation, requiring regular maintenance and adjustment. Ordinary straight booms can hardly block pedestrians and non-motor vehicles from illegal passing, leaving security loopholes. The E40Pro adopts non-spring machine core, structurally removing vulnerable spring parts, significantly reducing long-term maintenance frequency and cost, and delivering more stable operation. The 4.5m fence arm not only fully covers the lane width, but also strengthens physical access control through the fence structure, meeting the high-level security management requirements of government office compounds and improving access order and security level.
