Automatic Boom Barrier With Compacted Motor And Remote Controller For Parking Lot Area

المعلومات الأساسية
Place of Origin: China
اسم العلامة التجارية: WEJOIN
إصدار الشهادات: CE, ISO,
Model Number: WJDZ120
Minimum Order Quantity: 1set
الأسعار: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
معلومات تفصيلية
Barrier type: Automatic barrier Operating time: 3S 6S
Boom length: 3m 4m Boom type: Straight
Motor Material: Die-casted aluminium alloy Housing material: 380*265*1030
تسليط الضوء:

دليل بوابة الجدار,

,

car barrier gate


منتوج وصف

Automatic Boom Barrier With Compacted Motor And Remote Controller For Parking Lot Area​





Functions & Features



1. Auto closing realization through menu setting on the control panel
2. Remote Control Frequency: 315MHz, 418MHz, 433MHz
3. Manual release device to operate the barrier when power failure
4. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
5. Motor cooling fan to avoid the over-heating possibility
6. Automatic reversing when the barrier boom meets the obstruction
7. Supports the infrared photocell for anti-bumping function (optional)
8. Supports the external and internal vehicle loop detector (optional)
9. RS485 communication module (optional)
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor for solving mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (color is changeable with remote control)
14. Cabinet with traffic light



Model Selection and Differences



Model

Item

WJDZ12013 WJDZ12016
Opening Time 3S 6S
Boom Type Straight, square-shaped
Boom Length 3M 4M
Voltage 110V/220V
Motor/Power AC/120W
Working Temperature -35℃ - 75℃
Protection Grade IP44
Remote Control Distance 30M~100M




Applications

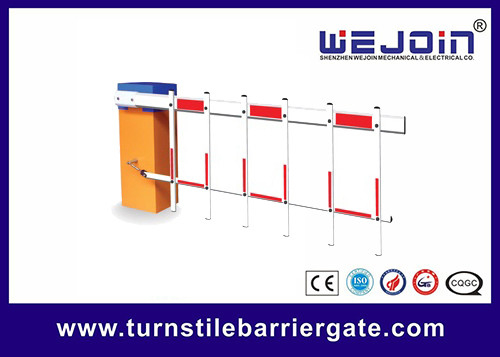

Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.



Specifications



Model WJDZ620
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 120W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 45kgs
Speed 3S, 6S
Max boom length 6 meters





Company And Products Q&A



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
